SMART BATTERY MONITOR
For different types of batteries, different voltages, new and old batteries, in order to better and easier to understand the use of the battery state and remaining capacity information, we developed these advanced battery monitors. Combined with complex software algorithms, we collect and calculate the voltage and current of a battery and display it with simple numbers and icons. Compared with other similar products on the market, LI-BM500 has the following advantages: Easy to program
Clear display interface and operation interface, combined with four physical buttons, easily set capacity, maximum voltage, minimum voltage, capacity alert to meet different needs.
Meanwhile, download the Android or IOS APP to do fast and easy settings.
Easy to install
Clear installed diagram, clear at a glance. The installation card with the monitor makes the installation hole position simple and clear.
Wireless, smart and simple
With the Bluetooth connection, to monitor the battery information on Android or IOS APP.
- Suitable a wide variety of battery systems

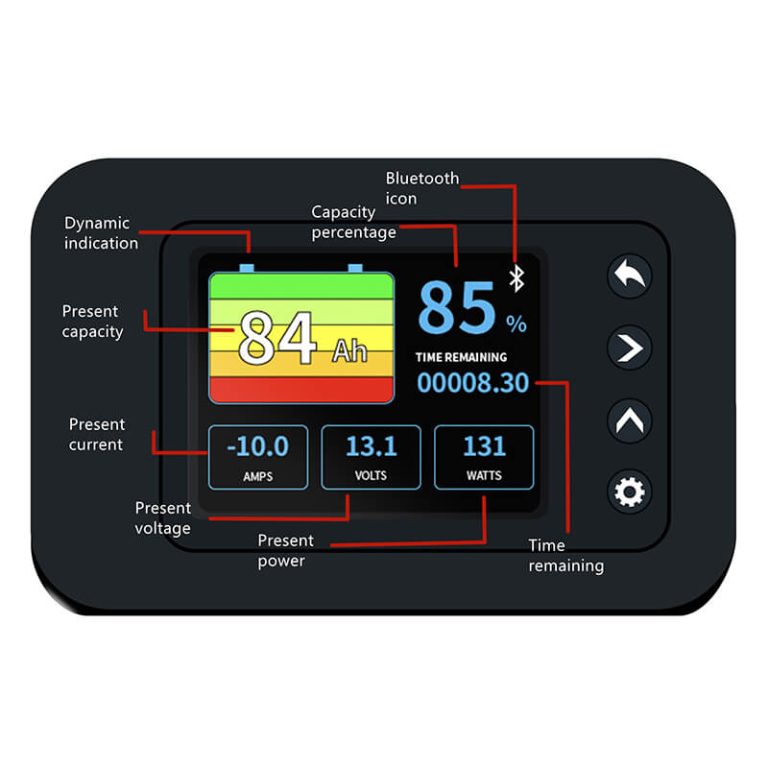

- Battery capacity, capacity percentage, voltage, current, power, time remaining
- Two screen interface, four buttons, easy to operate
- Simple installation
- Programmable alarm, high volt alarm, low volt alarm & low capacity alarm
- 500Amps quick connect shunt with PCB
- Wide voltage range: 10V – 120V, wide capacity range: 10 – 1000.0Ah
- Color LCD display, clear at a glance
- Advanced APP, download from Apple store or Google store
- One-button clear battery capacity calibration; one-button make battery capacity full calibration
Applications
- Solar power systems
- Commercial vehicles
- Marine applications
- Industrial power supply
- Camper/utility vans
Smart Battery Monitor | Shunt 500A | Bluetooth App Series
Licitti (Touchable) Battery Monitor Compatible With Android Ios App And Smart Alarm,Ip20 For Cars & Campervans/Marine/Off-Grid Solar Power System.

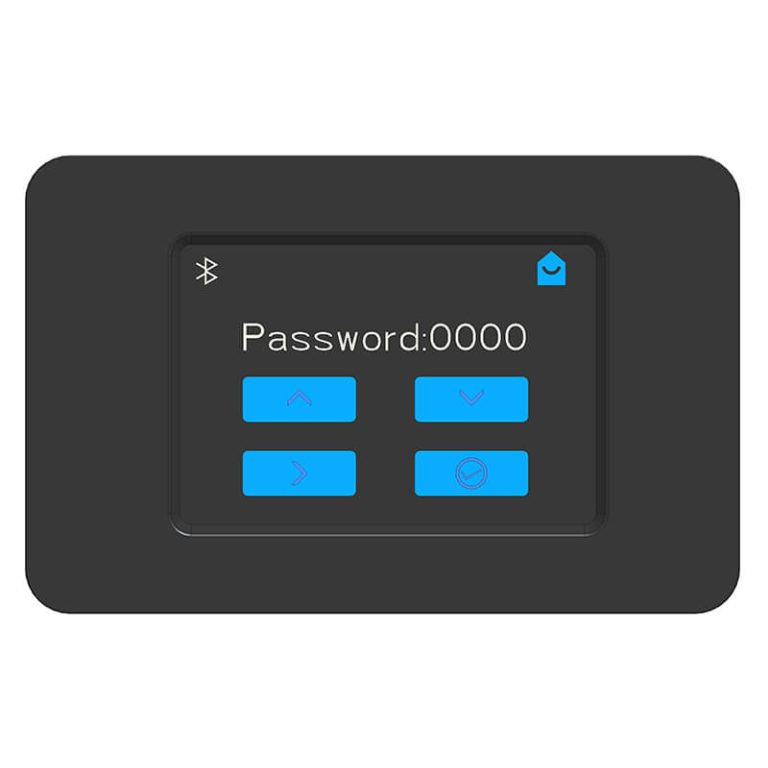

| Model | LI-BM500 | LI-BM600 |
| Supply voltage range | 10 – 120 VDC | |
| Battery capacity range | 10 – 1000.0 Ah | |
| Max measured current | 500 A | |
| Current consumption | ≤ 0.15 A | |
| Voltage accuracy | ±1 % | |
| Current accuracy | ±1 % | |
| Capacity accuracy | ±1 % | |
| Temperature range | -20°C – +50°C | |
| Communication | Bluetooth, RS485 | |
| Weight (LCD screen) | 125*80*21 mm | 125*80*35 mm |
| Dimension (LCD screen) | 110g | 120g |
| Protection class | IP20 | |
| Standards | EN 62368-1:2014+A11:2017 | |
| EN 50663:2017 | ||
| ETSI EN 301 489-1 V2.2.3(2019-11) | ||
| ETSI EN 301 489-17 V3.2.4(2020-09) | ||
| ETST EN 300 328 V2.2.2(2019-07) | ||
| FCC Part15.247 | ||
| ANSI C63.10:2013 | ||
