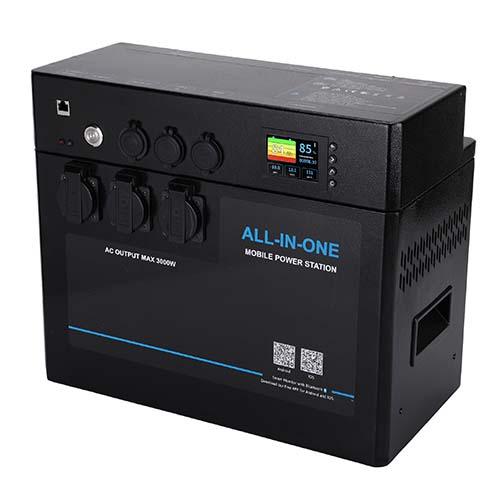

LI-3000
All-in-one lithium portable power station with 3000W pure sine wave inverter, DC-DC charging modular & MPPT solar charging modular.
Products Categories
Key Features
- Multiple DC & AC ports
- Expandable battery capacity
- Long Service Life ≥6000 cycles
- 3000W AC output (peak: 6000W)
- Easy dual-battery system setup
- Multiple DC & AC ports
- Design to mount in vehicle
LI-3000 SERIES
No Products Found
Specifications
| Model No. | LI-3000-12200 | LI-3000-24120 | |
| Battery Specification | |||
| Battery Type | LiFePO4(Lithium iron phosphate) | ||
| Battery Voltage | 12.8V | 25.6V | |
| Capacity | 200Ah | 120Ah | |
| Battery Lifespan | 6000+ Life cycles | ||
| BMS Capability | 250A | 120A | |
| Output Specification | |||
| AC Rate Power / Surge Power(max) | 3000W / 6000W | ||
| AC Continuous Output Voltage | 100-120V / 220-240V | ||
| AC Rated Frequency | 50Hz / 60Hz | ||
| AC Outlet | 3 x AC Outlet (max 3000W) | ||
| DC Outlet | 1 x 12V/24V 10A socket | ||
| 2 x USB3.0 + PD | |||
| 1 x 12V/24V 50A input/output | |||
| High current terminals | |||
| Input Specification | |||
| AC Charger | Input: 100-120V / 220-240V AC, 50/60Hz, 10A | ||
| Output: 14.6V 40A | Output: 29.2V 20A | ||
| DC-DC Charge | ALT input: 10-36VDC | ||
| Output: 14.6V 30A | Output: 29.2V 15A | ||
| MPPT solar Charge | Solar input: max 90V | ||
| Output: 14.6V 40A | Output: 29.2V 40A | ||
| EN60335, EN60335, EN55014, EN61000 | |||
| Operating Environment | Relative Humidity: 10%-90% | ||
| Operating Temperature: -10℃ to 50℃ Discharge, 0℃ to 50℃ Charge | |||
| Dimension | L420*265*345mm | L420*265*445mm | |
| Net Weight | 35.00KG | 43.00KG | |
