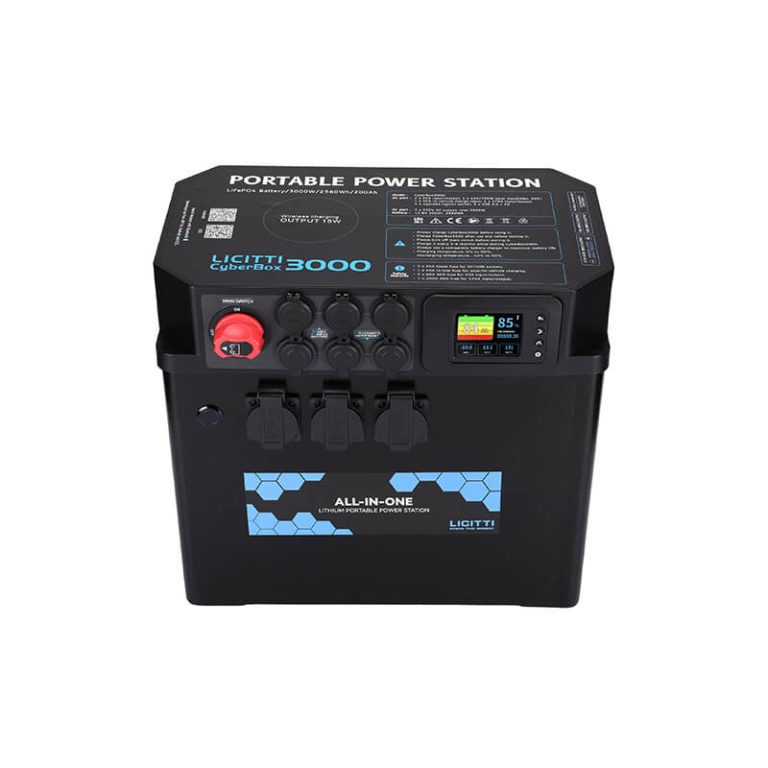

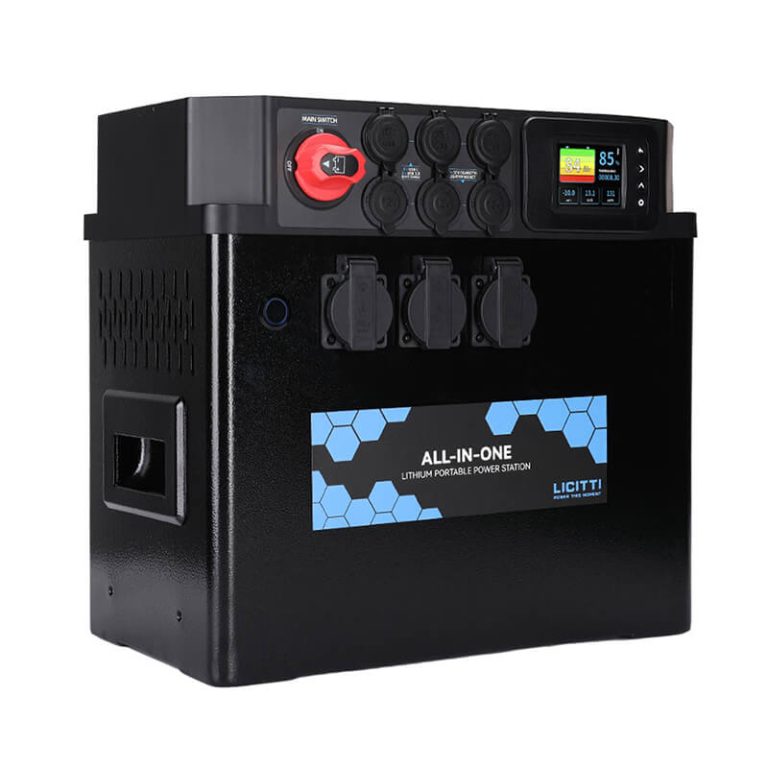

CYBERBOX 3000
CYBERBOX 3000 is a new generation portable power station, which integrates with 30A DC-DC charger & 40A MPPT solar controller, 3000W pure sine wave inverter. A variety of DC outlets on CYBERBOX 3000, like 50A Anderson ports, 175A Anderson port, 12V cig socket, USB & PD.With capacity expandability, it can easily expand its capacity via 175A Anderson port. 3000W pure sine inverter runs most of household appliances effortlessly.High strength metal case with easy hold-down system for vehicle. Smart battery monitor with Bluetooth APP to monitor charigng and discharging information easily.
Products Categories
Key Features
- ALL-IN-ONE solution
- Ultra-high Capacity
- Long Service Life ≥6000 cycles
- 3000W AC output (peak: 6000W)
- Easy dual-battery system setup
- Multiple DC & AC ports
- Various accessories
CYBERBOX 3000 SERIES
Specifications
| Model No. | CB200 | CB300 |
| Battery Specification | ||
| Battery Type | LiFePO4(Lithium iron phosphate) | |
| Battery Voltage | 12.8V | |
| Capacity | 200Ah | 300Ah |
| Battery Lifespan | 6000+ Life cycles | |
| BMS Capability | 250A | |
| Output Specification | ||
| AC Rate Power / Surge Power(max) | 3000W / 6000W | |
| AC Continuous Output Voltage | 100-120V / 220-240V | |
| AC Rated Frequency | 50Hz / 60Hz | |
| AC Outlet | 3 x AC Outlet (max 3000W) | |
| DC Outlet | 3 x 12V 10A socket | |
| 3 x USB3.0 + PD | ||
| 2 x 12V 50A input/output | ||
| 1 x 12V 175A outlet | ||
| Input Specification | ||
| AC Charger | Input: 100-120V / 220-240V AC, 50/60Hz, 10A | |
| Output: 14.6V 40A | ||
| DC-DC Charge | ALT input: 10-36VDC | |
| Output: 14.6V 30A | ||
| MPPT solar Charge | Solar input: max 90V | |
| Output: 14.6V 40A | ||
| EN60335, EN60335, EN55014, EN61000 | ||
| Operating Environment | Relative Humidity: 10%-90% | |
| Operating Temperature: -10℃ to 50℃ Discharge, 0℃ to 50℃ Charge | ||
| Dimension | L420*265*350mm | L420*265*445mm |
| Net Weight | 34.00KG | 40.00KG |
