LIFEPO4 BATTERY
The series of LiFePO4 battery are made with advance LiFePO4 battery cells, ensuring high levels of quality and performance. Available in a range of capacity from 8Ah to 400Ah at 12.8V or 25.6V. Built with the safest LiFePO4 battery technology and intelligent BMS, all batteries are durable for a long service life, with 6000+ life cycles and 10 years lifespan. Basically, suppoting for 1C charging and discharging rate to power your appliances reliably. Maximize the lifespan with multi-protections on charging, discharging and temperature. Our superior and reliable customization capabilities meet various ODM and OEM requirements.
Products Categories
Key Features
- Advance LiFePO4 technology with long service life, up to 10 times more cycles than lead acid batteries
- Smart BMS, multi-protections with balancing function
- Lighter weight, 60% lighter than lead acid battery
- Reliable charging and discharging capability, continuous up to 1C

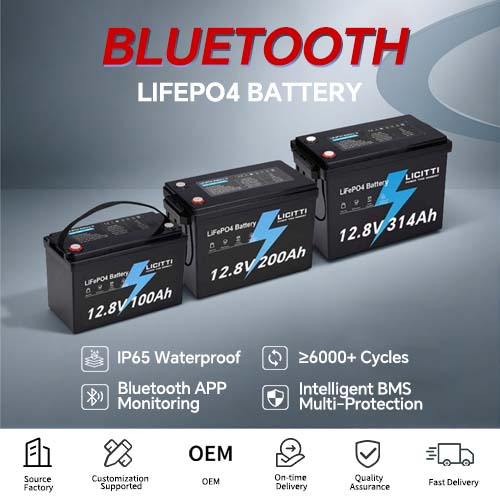

- Monitoring and setting the battery via Bluetooth APP(optional)
- Excellent expansion, supporting series and parallel connections to extend voltage and capacity
- Durable ABS casing or strong metal housing can be choose

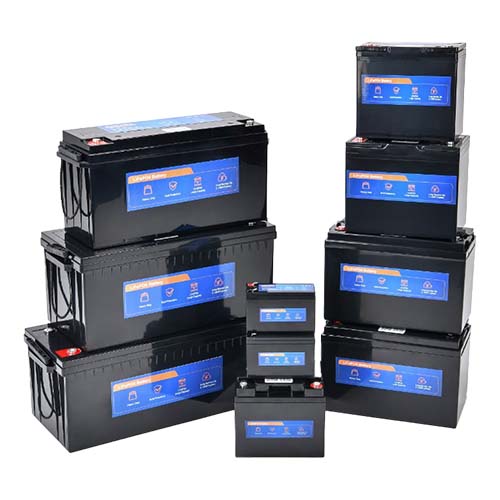

LiFePO4 Battery SERIES
No Products Found
Specifications
| No | Items | BMS | Dimension(mm) | Weight(Kg) | Capacity(Ah/Wh) |
| 1 | LiFePO4 12.8V 8AH | 4S, 10A BMS | L151*W65*H95 | 1.50 | 8Ah/102.4Wh |
| 2 | LiFePO4 12.8V 12AH | 4S, 10A BMS | L151*W98*H98 | 2.00 | 12Ah/153.6Wh |
| 3 | LiFePO4 12.8V 20AH | 4S, 20A BMS | L187*W77*H167 | 2.50 | 20Ah/256Wh |
| 4 | LiFePO4 12.8V 40AH | 4S, 50A BMS | L196*W166*H170 | 4.50 | 40Ah/512Wh |
| 5 | LiFePO4 12.8V 50AH | 4S, 50A BMS | L230*W145*H210 | 5.50 | 50Ah/640Wh |
| *** | |||||
| 95 | LiFePO4 12.8V 300AH | 4S, 200A BMS | L525*W270*H220 | 34.00 | 300Ah/3840Wh |
| 96 | LiFePO4 12.8V 400AH | 4S, 200A BMS | L525*W270*H220 | 41.00 | 400Ah/5120Wh |
| 97 | LiFePO4 25.6V 100AH | 8S 100A BMS | L485*W172*H240 | 28.00 | 100Ah/2560Wh |
| 98 | LiFePO4 25.6V 200AH | 8S, 200A BMS | L525*W270*H220 | 41.00 | 200Ah/5120Wh |
| 99 | LiFePO4 25.6V 300AH | 8S, 200A BMS | L525*W270*H220 | 50.00 | 300Ah/7050Wh |
| 100 | LiFePO4 51.2V 100AH | 16S, 100A BMS | L525*W270*H220 | 46.00 | 100Ah/5120Wh |
