Mini DC CONTROL BOX is a external DC 12V/24V control system with multiple DC outlets for DC appliances. Connecting DC CONTROL BOX with 12V/24V battery directly is the simplest way to be a DC power station.

  • Multiple DC Output Ports
  • Multicolor voltage display
  • Make Remote Charging& Discharging Easy
  • Compact Size.Perfect for Outdoor
  • Back Slide Design
  • Easy to Connect
Products Categories

LI-DC2 Description

Multiple Dc Output Ports

MINl DC control box can charge up to 11 different devicesat the same time. Built-in 6 x USB port ( 2 x 2.4A,2 x QC3.02X PD ),1 x12V Cig socket,2 x Anderson input/output.2 x 12V DC port. lt can be used as a power source for youilaptop, mobile phone, audio equipment, cigarette lighterand other electronic devices when connected to a 12V/24V

Multi-function Display

Intuitive and clear battery voltage display, you can monitor batterystatus and voltage at any time.

Make Remote Charging &Discharging Easy

For outdoor work, camping, self-driving travel and other outdooractivities.DC control box can be moved for remote equipmentpower supply, to achieve convenient electricity.

Compact Size,Perfect for Outdoor

  • Easy to make a DC power station via
  • DC control box. Compact size.
  • Portable and handy.

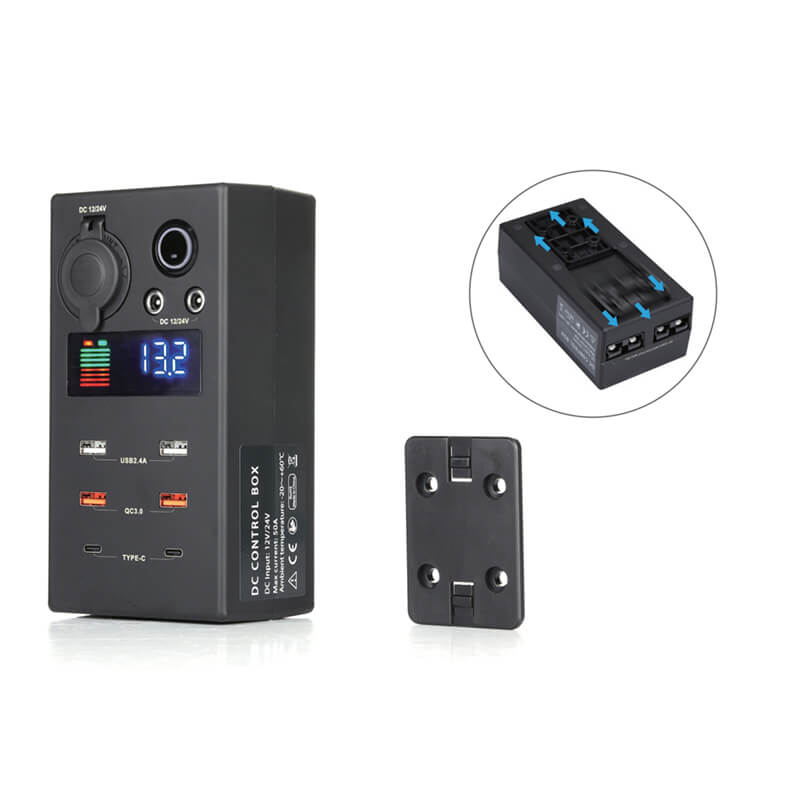

Back Slide Design

With the back slide design, DC control boxcan be mounted at any angle or used portably via theextension cord provided. Light in weight, small in sizecompact in design, easy to carry, it is an ideal partnerfor camping life or RV life. Simply connect it to thebattery and then plug in your devices to use!

Easy to Connect

Plug and play design with Anderson connectors asinput/output, connecting with battery terminals bythe other end, to make a DC power station.


Model LI-DC2
Voltage 12V/24V
Case material ABS
DC outlet 2 x 50A Anderson input/output
2 x USB 2.4A
2 x QC3.0, 18W
2 x PD, 45W
1 x 12V 10A cig socket
2 x 5A DC port
Dimension(mm) L170*W90*H63
Weight(Kg) 0.7

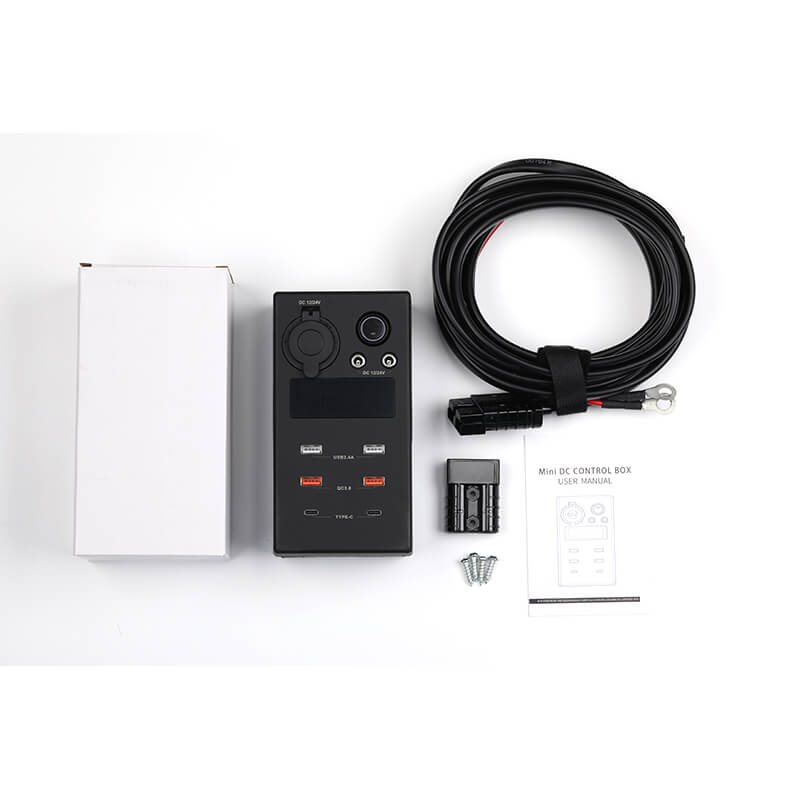

LI-DC2 Detail Display

1 x Mini DC Control Box

1 x User Manual

1 x 50A Anderson Connector

4 x screws

1 x 5M Anderson – M8 Extension Cable
