HYBRIDS SOLAR INVERTER

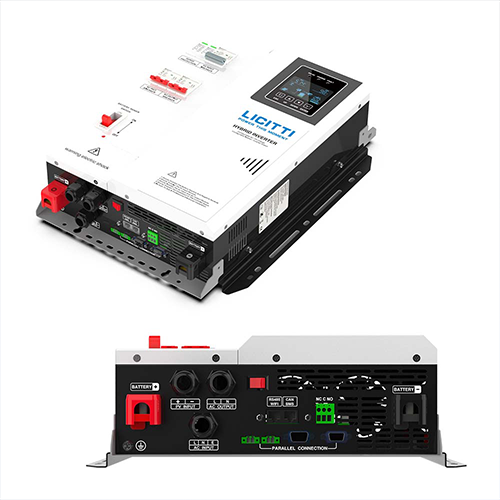

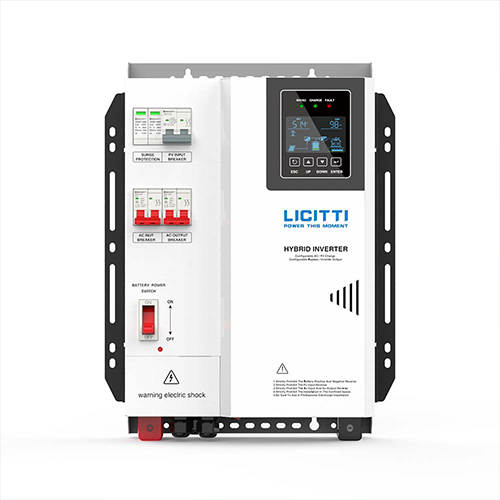

3000W Hybrids solar inverter with breakers
This device is a hybrid inverter/charger,Combines the functions of inverter/solar charger AC charger UPS.
Features a comprehensive LCD display with user-configurable and easy-to-access operation buttons such as battery charge current, AC/solar charging.
Functions such as device priority,and based on different applications, it provides acceptable input voltage and parameter settings.

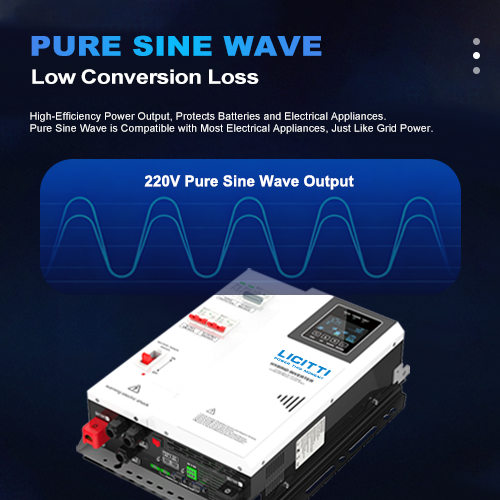

Pure sine wave output Configurable DC input voltage range battery charge voltage battery float charge voltage.
Configurable battery charge current battery hybrid charge solar charger priority AC output voltage.

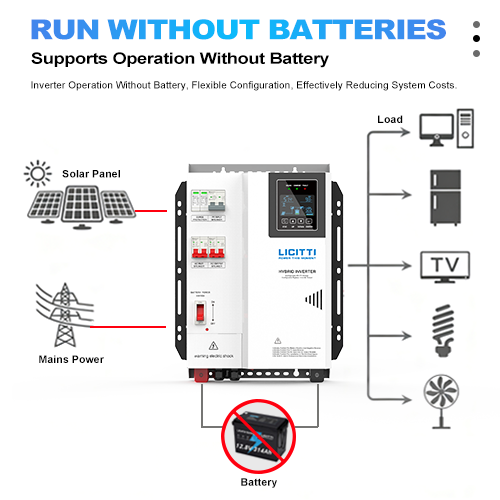

AC output frequency UPS mode transition priority LCD display mode. Energy saving mode, supports PV operation without batteries.
with complete protection circuitry and monitoring system.Intelligent battery charger design.

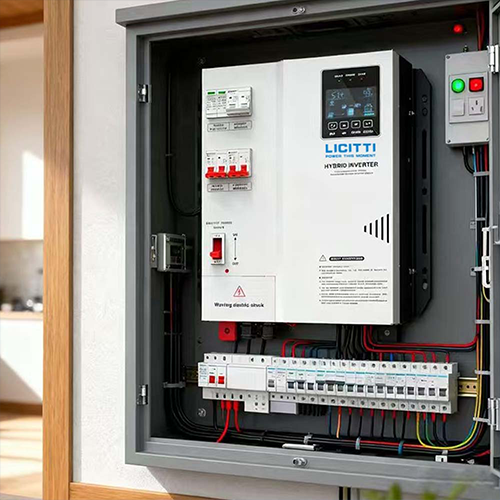

Widely used in rooftop photovoltaics,RVs,yachts,small farms,home appliances,power tools,office and portable devices,etc.
Rated power 3KW 4KW 5.5KW 12V 24V 48V
Products Categories
Hybrids solar inverter Description
Hybrid Solar System
- Pure sine wave output
- Configurable DC input voltage range
- Configurable battery charge voltage
- Configurable battery float charge voltage
- Configurable battery charge current
- Configurable battery hybrid charge
- Configurable AC/solar charger priority
- Configurable AC output voltage
- Configurable AC output frequency
- Configurable UPS mode transition priority
- Configurable LCD display mode
- Configurable energy-saving mode, supports PV operation without batteries, with complete protection circuitry and monitoring system
- Intelligent battery charger design (to optimize battery performance, battery balancing mode, and lithium battery feed activation)
Hybrids solar inverter with breakers Rated power 3KW 4KW 5.5KW 12V 24V 48V
PRODUCT SPECIFICATIONS
| Specifications | LI-12V-3KHP | LI-24V-4KHP | LI-48V-5KHP |
| Input Voltage Waveform | Pure sine wave (grid or generator) | ||
| Output Voltage | Default 230Vac (Configurable to 220Vac/230Vac/240Vac) | ||
| Output Frequency | 50Hz/60HZ(Configurable) | ||
| Conversion Efficiency | 85%-88% | 88%-90% | 90%-94% |
| Charging Current | Default 60A (Adjustable to 150A) | Default 50A (Adjustable to 100A) | Default 30A (Adjustable to 80A) |
| PV Charging Current | Default 60A (max120A Configurable) | Default 60A (max 100A Configurable) | Default 30A (max 80AConfigurable) |
| Hybrid Charging Current = Grid Charging + Solar Charging |
Default 60A (max 120A Configurable) | Default 60A (max 100A Configurable) | Default 60A (max 100A Configurable) |
| Nominal DC Voltage | 12V | 24V | 48V |
| Rated Power | 3KW (Rated R load ) | 4KW (Rated R load ) | 5.5KW (Rated R load ) |
| Maximum PV Input Power | 4.5KW | 4.5KW | 6KW |
| MPPT max Conversion Efficiency | 98%-99% | ||
| PV Optimal Nominal Voltage | 240Vdc~400Vdc | ||
| PV Input Voltage Range | 65Vdc~450Vdc | ||
| PV max Open-circuit Voltage | 500Vdc | ||
| Protection Rating: | IP20 | ||
| Operating Temperature Range | -10°C to 50°C | ||
| Storage Temperature | -15°C~ 60°C | ||
| Storage Humidity | 5% to 95% Relative humidity (non-condensing) | ||
| Dimensions (L*W*H) (mm) | 312mm*218mm*100mm | ||
| Net Weight (kg) | 4kg | ||
Hybrids solar inverter Detail Display
