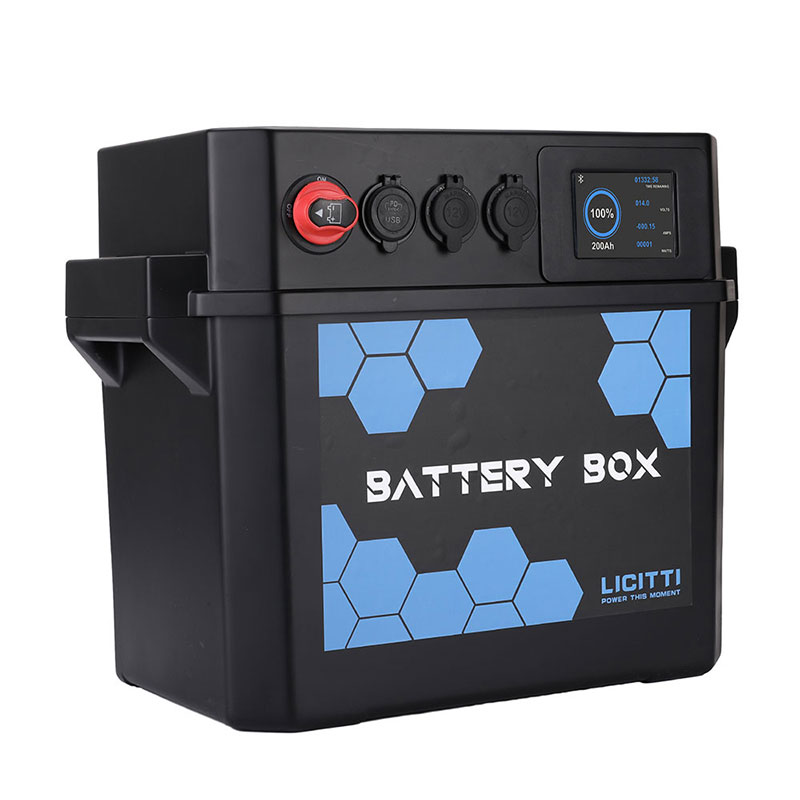

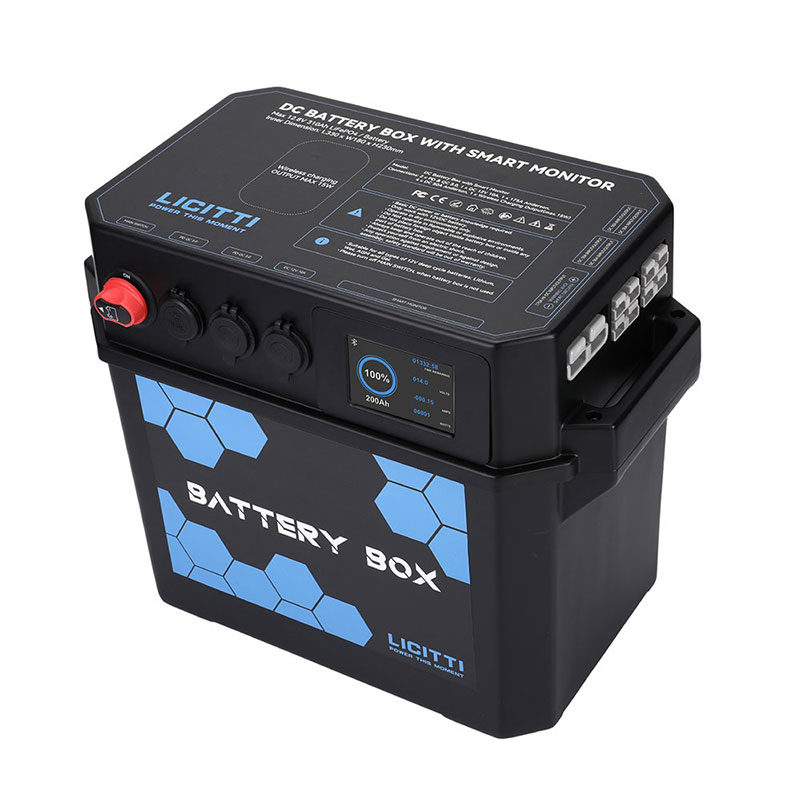

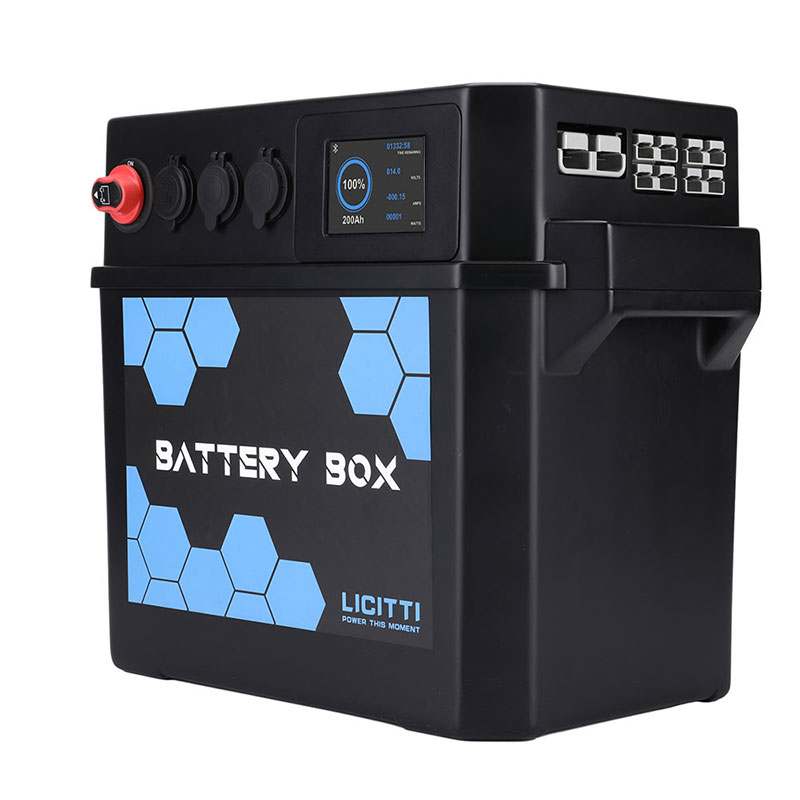

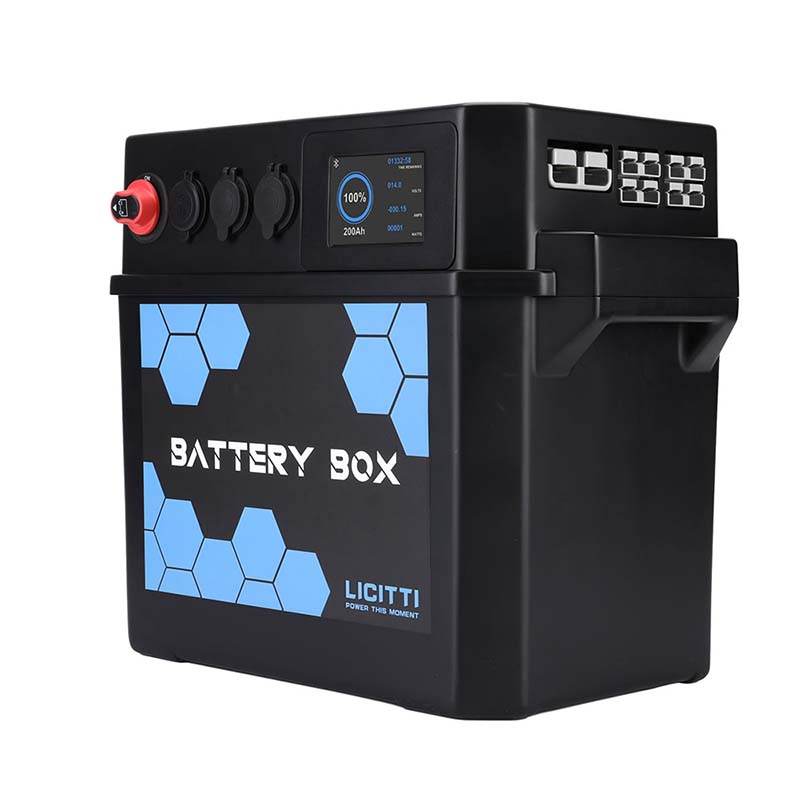

DC BATTERY BOX MAX

Heavy duty battery box is the innovative solution to turn a battery into a portable power station.

Pre-wired all parts and connnections with design of plug & play setup, making it easy to install and use without any electrical expertise.

Suitable multi-battery types,Lithium, Lead-Acid, AGM, Gel and Calcium batteries, perfect for dual battery system.

Smart batterry monitor with Bluetooth APP.

  • Innovative Design
  • LCD Touch Screen
  • Plug & Play
  • High Power Anderson Connectors
  • Pre-wired, perfect for DIY
  • Mount Battery Tight, Keep it Safe
Products Categories

DC BATTERY BOX MAX Description

Innovative Design

  • High quality ABS housing with integrated handle design;
  • Max carry weight up to 77lbs(35kg);
  • Fit group 27/31 size battery(L330*W180*H240mm);
  • Fit lead-acid, AGM, Gel & LiFePo4 12V battery, capacity: 70-310Ah;
  • Perfect DIY power station solution for camping/solar/marine/RV etc.

LCD Touch Screen

  • Simple and clear;
  • Monitoring battery voltage, capacity, current & time remaining etc.
  • Programmable alarm, high volt alarm, low volt alarm & low capacity alarm
  • Advanced APP, download from Apple store & Google store.

Plug& Play

  • 2 x USB3.0 + PD DC ports (quick charge 3.0) to charge 4 x digital product simultaneously;
  • 1 x 10A Cig socket to run 12V light, DC fridge etc.;
  • 1 x 15 wireless charging output;

High Power Anderson Connectors

  • 1 x 175A Anderson port can be used for jump start and connect with external inverter (max 2000w);
  • 4 x 50A grey Anderson port as 50A DC input/output, DIY as solar input and DC-DC input.

Pre-wired, perfect for DIY

  • Pre-wired all parts and components;
  • Multiple protections – auto reset circuit breaker, inline fuse, main on/off switch;
  • Easy to connect with battery +- terminals.

Mount Battery Tight, Keep it Safe

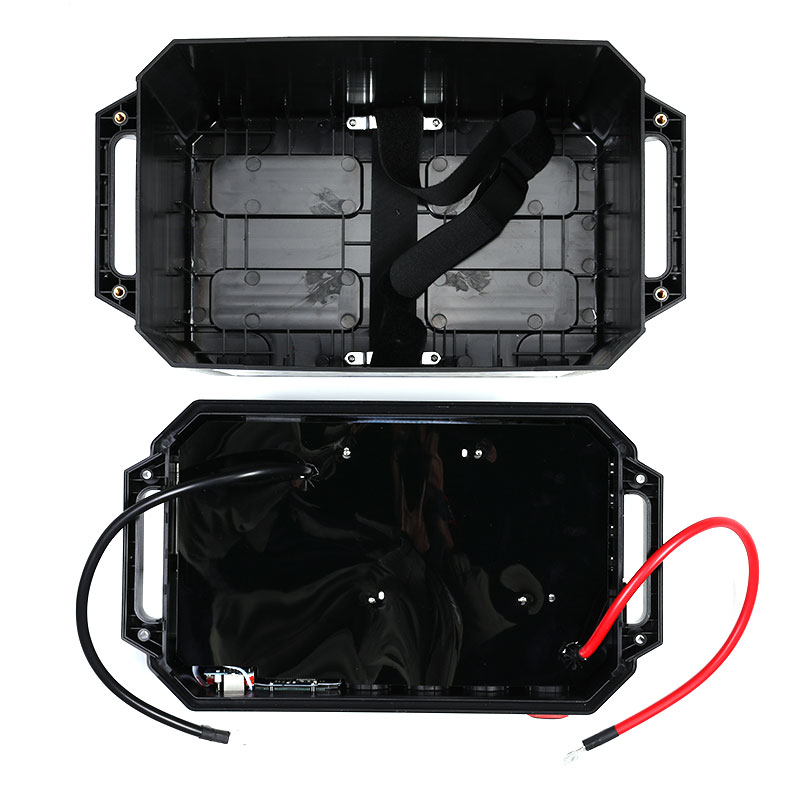

  • Inner strap to tie-down battery inside;
  • External battery box tray & straps to hold-down battery box for camping/RV/marine etc.

PRODUCT SPECIFICATIONS

Model DC Battery Box Max
Box Material ABS+PC UL94 V-0
Box Dimension L420 x W240 x H340mm
Max Battery Dimension L330 x W180 x H240mm
Weight 4.1kg
Max.Battery Weight 35.0kg
Suitable Battery Type Lithium(LiFePO4), AGM, Gel, Calcium, Wet
DC Port 4 x DC 50A Anderson plug
1 x DC 175A Anderson plug
2 x PD & QC 3.0
1 x DC 12V 10A Cig socket
1 x Wireless output(max.15W)
Charging Method AC Charger, Solar, In-vehicle via 50A Anderson plug
Operating Temperature  -10°C~+60°C
Humidity 5%~95%
APP(IOS & Android) Via Bluetooth
Alarm Capacity, Voltage
Cooling Method Natural Heat Dissipation
Protection Degree IP64
Certificate CE, RoHS, FCC

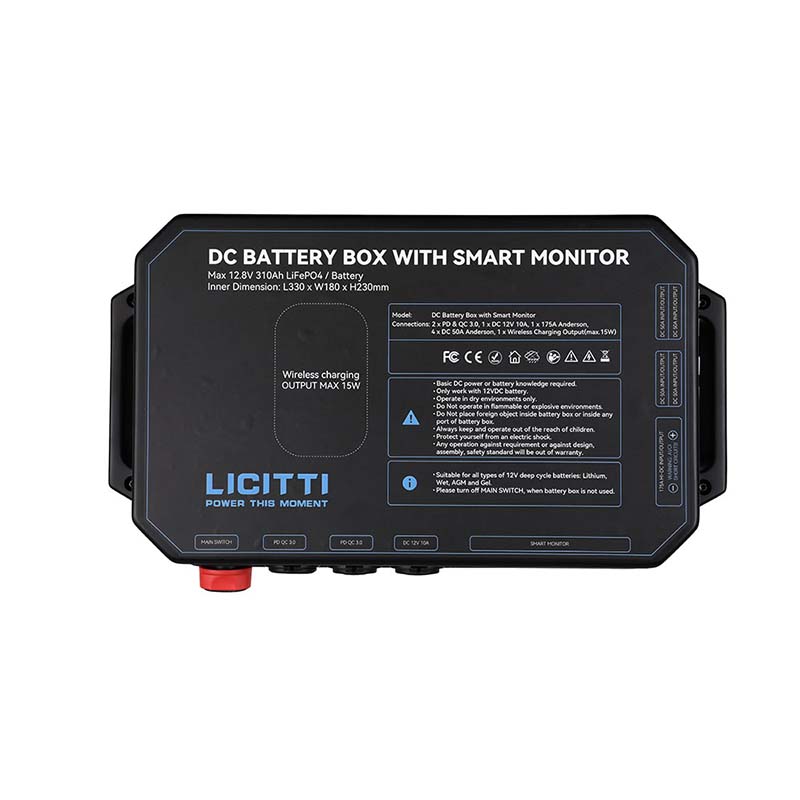

DC BATTERY BOX MAX Detail Display

1 x Heavy Duty Battery Box

2 x Tie down strap

2 x Mounting bracket

2 x Terminal cover

1 x Allen key

4 x Bolts

1 x User manual
