AC BATTERY BOX PRO

Heavy duty battery box is the innovative solution to turn a battery into a portable power station.

Pre-wired all parts and connnections with design of plug & play setup, making it easy to install and use without any electrical expertise.

Suitable multi-battery types,Lithium, Lead-Acid, AGM, Gel and Calcium batteries, perfect for dual battery system.

  • Innovative Design
  • LCD Screen
  • Plug & Play
  • High Power Anderson Connectors
  • Pre-wired, perfect for DIY
  • Mount Battery Tight, Keep it Safe
Products Categories

AC BATTERY BOX PRO Description

Innovative Design

  • High quality ABS housing with integrated handle design;
  • Max carry weight up to 77lbs(35kg);
  • Fit group 27/31 size battery(L330*W180*H240mm);
  • Fit lead-acid, AGM, Gel & LiFePo4 12V battery, capacity: 70-310Ah;
  • Perfect DIY power station solution for camping/solar/marine/RV etc.

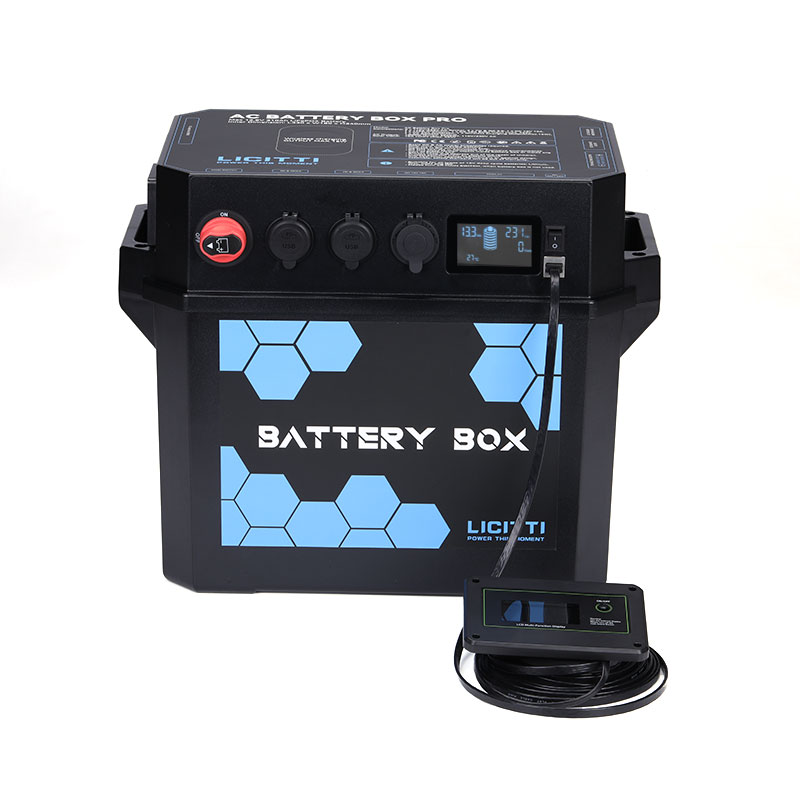

LCD Screen

  • Simple and clear;
  • Monitoring estimated battery capacity;
  • Showing DC voltage, AC voltage & AC power;
  • Bypass all DC input/output to save power.

Plug & Play

  • 2 x USB3.0 + PD DC ports (quick charge 3.0) to charge 4 x digital product simultaneously;
  • 1 x 10A Cig socket to run 12V light, DC fridge etc.;
  • 1 x 15 wireless charging output;
  • 2 x AC socket – 110VAC 60Hz / 230V 50Hz, max power ≥1000W。

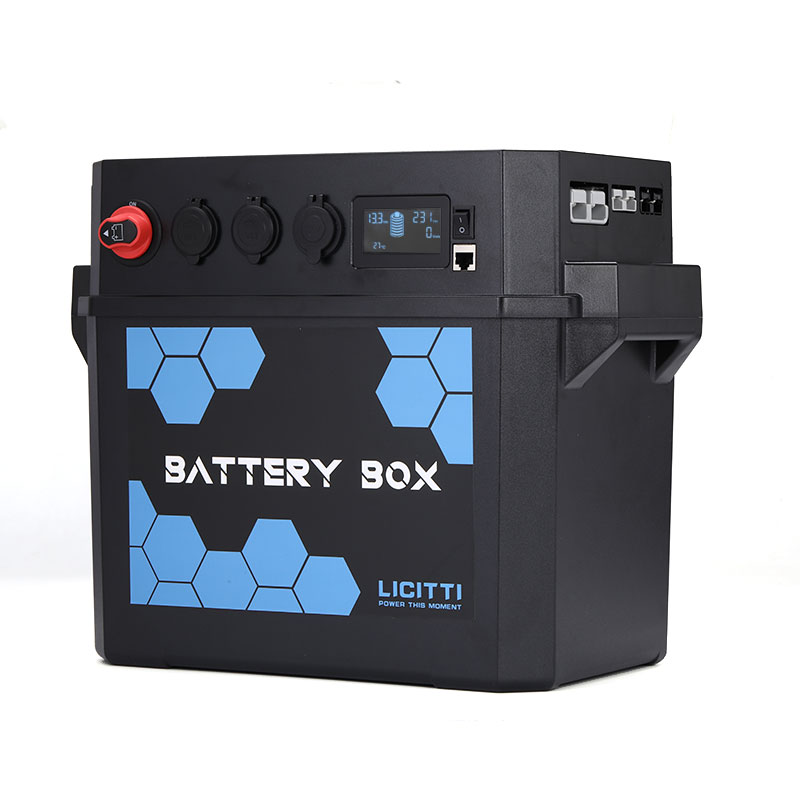

High Power Anderson Connectors

  • 1 x 175A Anderson port can be used for jump start and connect with external inverter (max 2000w);
  • 1 x 50A black Anderson port as solar input (max 150W & 50V);
  • 1 x 50A grey Anderson port as 50A DC input/output;

Pre-wired, perfect for DIY

  • Pre-wired all parts and components;
  • Multiple protections – auto reset circuit breaker, inline fuse, main on/off switch;
  • Easy to connect with battery +- terminals.

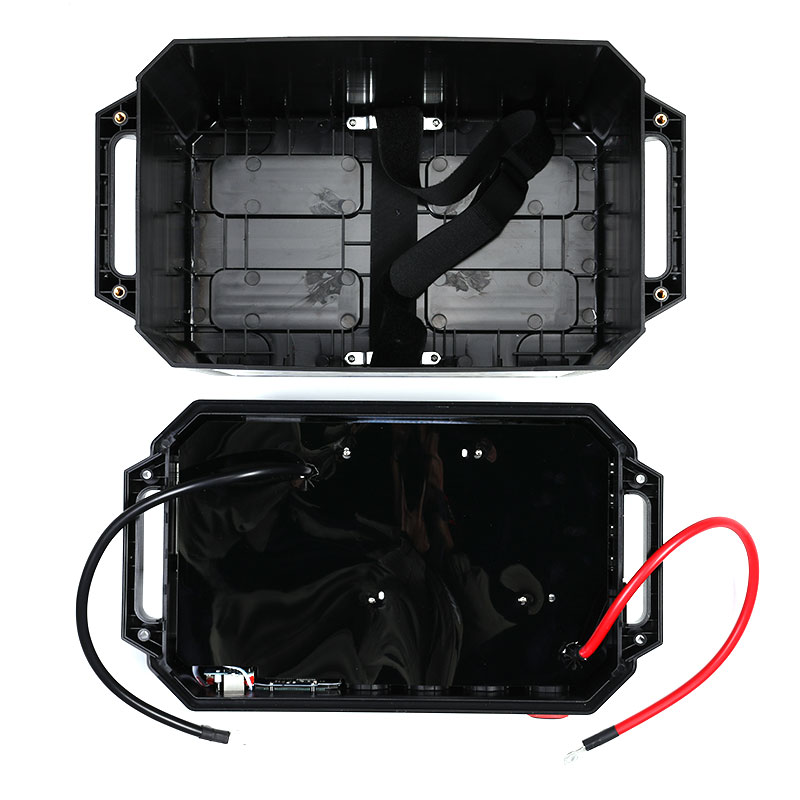

Mount Battery Tight, Keep it Safe

  • Inner strap to tie-down battery inside;
  • External battery box tray & straps to hold-down battery box for camping/RV/marine etc.

PRODUCT SPECIFICATIONS

Model AC Battery Box Pro
Box Material ABS+PC UL94 V-0
Box Dimension L420 x W240 x H340mm
Max Battery Dimension L330 x W180 x H240mm
Weight 5.3kg
Max.Battery Weight 35.0kg
Suitable Battery Type Lithium(LiFePO4), AGM, Gel, Calcium, Wet
DC Port 1 x DC 50A Anderson plug
1 x DC 175A Anderson plug
2 x PD & QC 3.0
1 x DC 12V 10A Cig socket
1 x Wireless output(max.15W)
1 x DC 10A Solar Input(max. 45V)
AC Port 2 x AC socket(max.1000W)
Charging Method AC Charger, Solar, In-vehicle via 50A Anderson plug
Operating Temperature  -10°C~+60°C
Humidity 5%~95%
Cooling Method Fans
Protection Degree IP20
Certificate CE, RoHS, FCC
More Details

1 x Heavy Duty Battery Box

1 x 50A Anderson to alligator clips

1 x 50A Anderson to MC4

1 x Allen key

2 x Tie down strap

2 x Mounting bracket

2 x Terminal cover

4 x Bolts

1 x User manual
