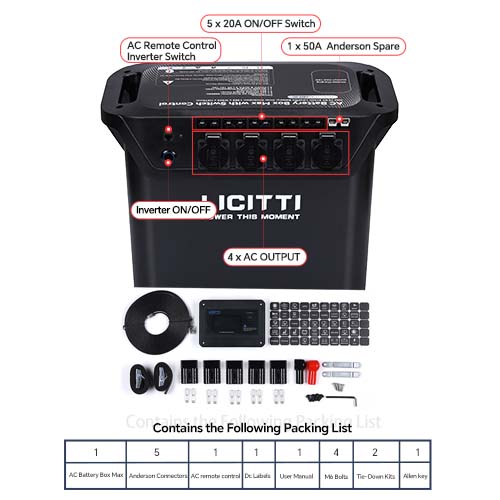

What’s included?
- 1 x AC Battery Box Max with Switch control
- 1 x AC remote control
- 5 x Anderson connectors
- 1 x DC labels
- 1 x Allen key
- 4 x M6 bolts
- 2 x Tie-down kits
- 1 x User manual
Showing Slide 1 of 4

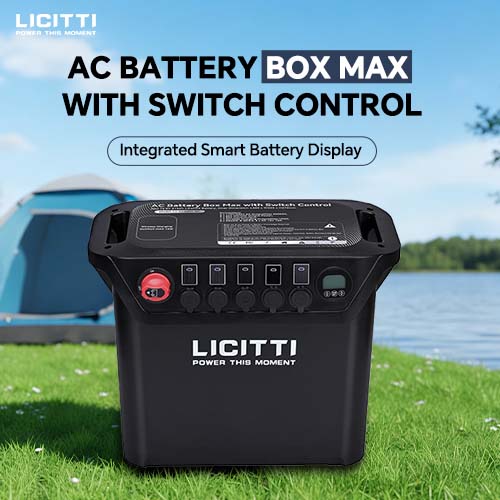

AC Battery Box Max with Switch Control
Big battery & big power, it’s more than Big!

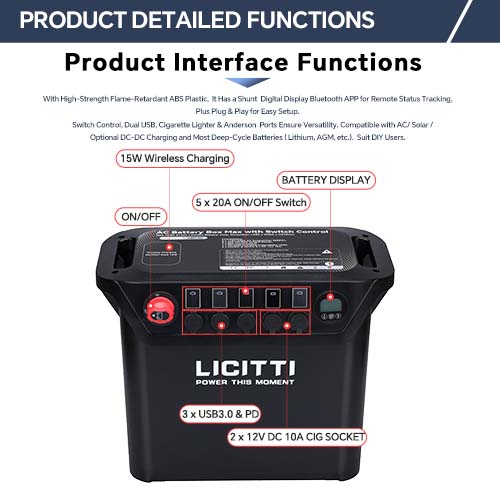

Innovative Design
Shunt Monitor with Bluetooth APP
Plug & Play
High Power AC Output
Pre-wired, perfect for DIY
Switch Control
With 2000W Inverter AC Battery Box
With High-Strength Flame-Retardant ABS Plastic, It Has a Shunt Digital Display Bluetooth APP for Remote Status Tracking, Plus Plug & Play for Easy Setup.
Switch Control, Dual USB, Cigarette Lighter & Anderson Ports Ensure Versatility. Compatible with AC/ Solar / Optional DC-DC Charging and Most Deep-Cycle Batteries ( Lithium, AGM, etc.). Suit DIY Users.
Products Categories
AC Battery Box Max Description

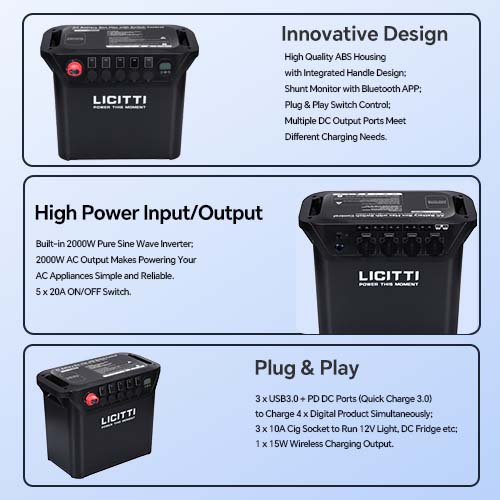

Innovative Design
- High quality ABS housing with integrated handle design;
- Max carry weight up to 110lbs(50kg);
- Fit the most popular 12V 314Ah LiFePO4 battery(L384*W205*H250mm);
- Rear embedded port design;
- Perfect DIY power station solution for camping/solar/marine/RV etc.
Shunt Monitor with Bluetooth APP
- Easy settings via Bluetooth APP
- Monitoring battery voltage, remaining capacity, current & time remaining.
Plug & Play
- 2 x USB3.0 + PD DC ports (quick charge 3.0) to charge 4 x digital product simultaneously;
- 3 x 10A Cig socket to run 12V light, DC fridge etc.;
- 1 x 15W wireless charging output;
High Power AC Output
- 2000W AC output makes powering your AC appliances simple and reliable.

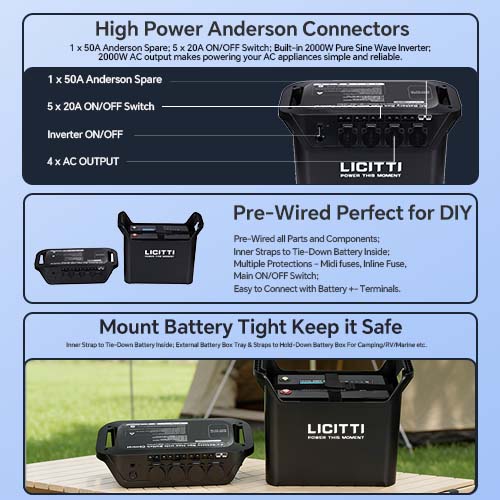

Pre-wired, perfect for DIY
- Pre-wired all parts and components;
- Inner straps to tie-down battery inside;
- Multiple protections – midi fuses, inline fuse, main on/off switch;
- Easy to connect with battery +- terminals.
Switch Control
- 5 x 20A ON/OFF switch, independent control of five DC appliances, right at your fingertips.
PRODUCT SPECIFICATIONS
| Model | AC Battery Box Max with Switch |
| Box Material | ABS+PC UL94 V-0 |
| Box Dimension | L488 x W288 x H380mm |
| Max Battery Dimension | L384 x W205 x H270mm |
| Net Weight | 8KG |
| Max Battery Weight | 35.00KG |
| Suitable Battery Type | Lithium ( LiFePO4 ), AGM, Gel, Calcium, Wet |
| DC Port | 6 x DC 50A Anderson Port |
| 3 x PD & QC 3.0 | |
| 2 x DC 12V 10A Cig Socket | |
| AC Port | 4 x Max 3000W Output |
| Operating Temperature | -10°C ~ + 60°C |
| Humidity | 5%~95% |
| Certificate | CE, RoHS, FCC |

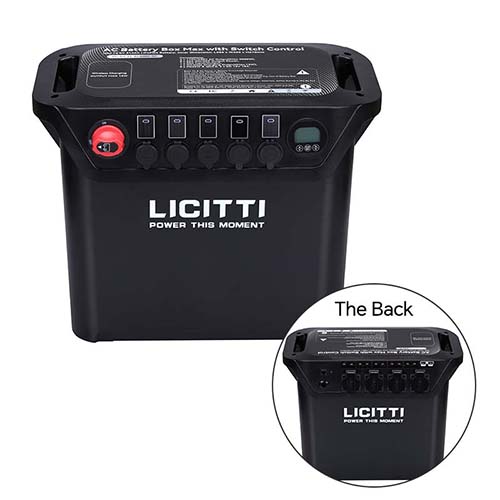

AC Battery Box Max Detail Display
