Showing Slide 1 of 4: 51.2V RACK MOUNT Home Energy Storage BATTERY
51.2V RACK MOUNT BATTERY
51.2V Rack Mount Home Energy Storage Battery
The latest 51.2V rack mount LiFePO4 storage batteries are designed for hybrid power system, solar off-grid power system, backup power system, residential & commercial energy storage system, with high safety & reliability, and long service life (≥6000 cycles life @ 80%DOD).
- Rack-Mounted Design: Easy installation and integration into existing systems.
-
LiFePO4 Battery: Reliable and long-lasting battery technology.
-
Multiple Communication Ports: Supports CAN, RS-485, RS-232, and Bluetooth.
Products Categories
51.2V RACK MOUNT BATTERY Description
51.2V Rack Mount Home Energy Storage Battery | 2560Wh 5120Wh 10240Wh Series
LICITTI 51.2V rack mount battery has different capacities, 2560Wh 5120Wh 10240Wh 14336Wh, ome energy storage solar off-grid system,intelligent BMS.

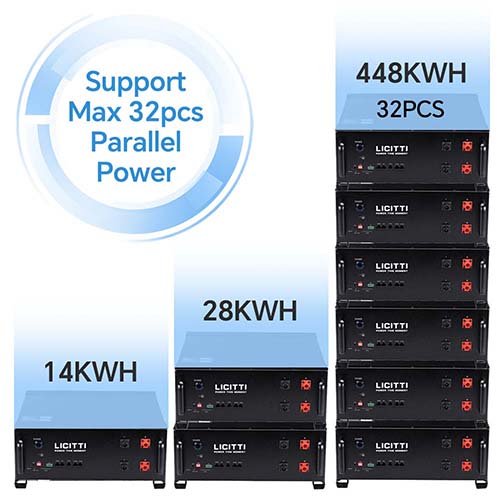

- Rack Mounted Design, up to max 32 modules in parallel
- Intelligent BMS with RS485, CAN (display/Module of Bluetooth is optional), compatible with leading inverter brands
- 100A quick inserted plugs and socket, safe and convenient
- High energy desity LiFePO4 battery cells with quality laser welding and packing
- Multi-protections: overcharge and over-discharge protection & recovery, over-current protection & recovery, temperature protection & recovery
PRODUCT SPECIFICATIONS
| Model | LI-LFP4850 | LI-LFP48100 | LI-LFP48200 | LI-LFP48280 |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Nominal Voltage(V) | 51.2V | 51.2V | 51.2V | 51.2V |
| Nominal Capacity(Ah) | 50Ah | 100Ah | 200Ah | 280Ah |
| Nominal Capacity(Wh) | 2560Wh | 5120Wh | 10240Wh | 14336Wh |
| 输出电压 | 110-240V | 110-240V | 110-240V | 110-240V |
| 容量 KWH | 2.56KWH | 5.12KWH | 10KWH | 14KWH |
| Configuration | 16 x 3.2V 50Ah | 16 x 3.2V 100Ah | 16 x 3.2V 200Ah | 16 x 3.2V 280Ah |
| Design Life | 10 + years | 10 + years | 10 + years | 10 + years |
| Cycle Life | ＞6000 cycles | ＞6000 cycles | ＞6000 cycles | ＞6000 cycles |
| Dimension(mm) | 442*420*132 | 442*420*160 | 442*600*250 | 442*720*250 |
| Weight(Kg) | 30Kg | 40Kg | 80Kg | 100Kg |
| Charge & Discharge Current | 40A(Rated) | 50A(Rated) | 100A(Rated) | 100A(Rated) |
| 50A(Max) | 100A(Max) | 200A(Max) | 200A(Max) | |
| Power Consumption | ≤25mA(Run), ≤150uA(Sleep) | ≤25mA(Run), ≤150uA(Sleep) | ≤25mA(Run), ≤150uA(Sleep) | ≤25mA(Run), ≤150uA(Sleep) |
| Monitoring Parameters | System voltage, current, cell voltage,cell temperature, module temperature | System voltage, current, cell voltage,cell temperature, module temperature | System voltage, current, cell voltage,cell temperature, module temperature | System voltage, current, cell voltage,cell temperature, module temperature |
| SOC | Intelligent algorithm | Intelligent algorithm | Intelligent algorithm | Intelligent algorithm |
| Communication | CAN/RS485 | CAN/RS485 | CAN/RS485 | CAN/RS485 |
| Operating Temperature(℃） | 0°C ~50°C Charge | 0°C ~50°C Charge | 0°C ~50°C Charge | 0°C ~50°C Charge |
| 10°C ~50°C Discharge | 10°C ~50°C Discharge | 10°C ~50°C Discharge | 10°C ~50°C Discharge | |
| Working with Mainstream Inverters | PYLONTECH, GOODWE, GROWATT, SMA, VICTRON, TBB, DEYE, INVT, VOLTRONIC POWER, SOFAR etc. | |||
51.2V RACK MOUNT BATTERY Detail Display
