DCDC MPPT Solar Charger China Suppliers

The dual input DCDC MPPT Solar Charger could draw power from smart alternator as well as solar panel, to perform a proper
charging for service battery while you are driving.
DCDC MPPT Solar Charger are compatible with smart ECU controlled alternator (Euro 6) which delivers a variable output when they
are not needed. DCDC MPPT Solar Charger could maintain the charging with a stable output in this situation, to assure your battery
getting a fully charging in the shortest time.
It will protect or maintain your starter battery even if engine was stopped without issue of starting problems.

DCDC MPPT Charger Features

  • Dual input from alternator and solar panel
  • Compatible with smart alternator – Euro 6

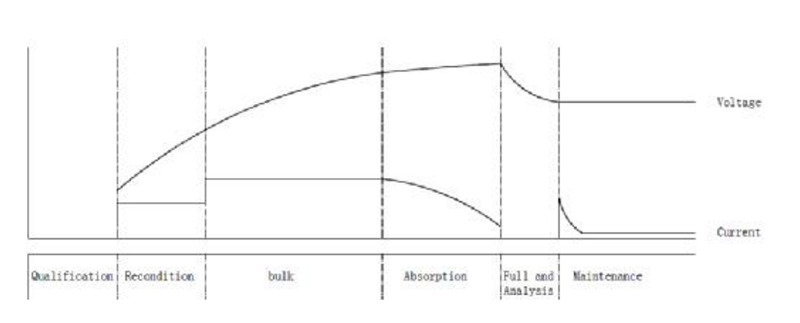

  • Multiple stages charging algorithm for lead acid battery
  • Built in automatic temperature and voltage compensated battery charging
  • Multiple battery chemicals including AGM, GEL, LFP(LiFePO4) etc
  • Max Power Point Tracking (MPPT) technology
  • Compact and Water Proof, IP65

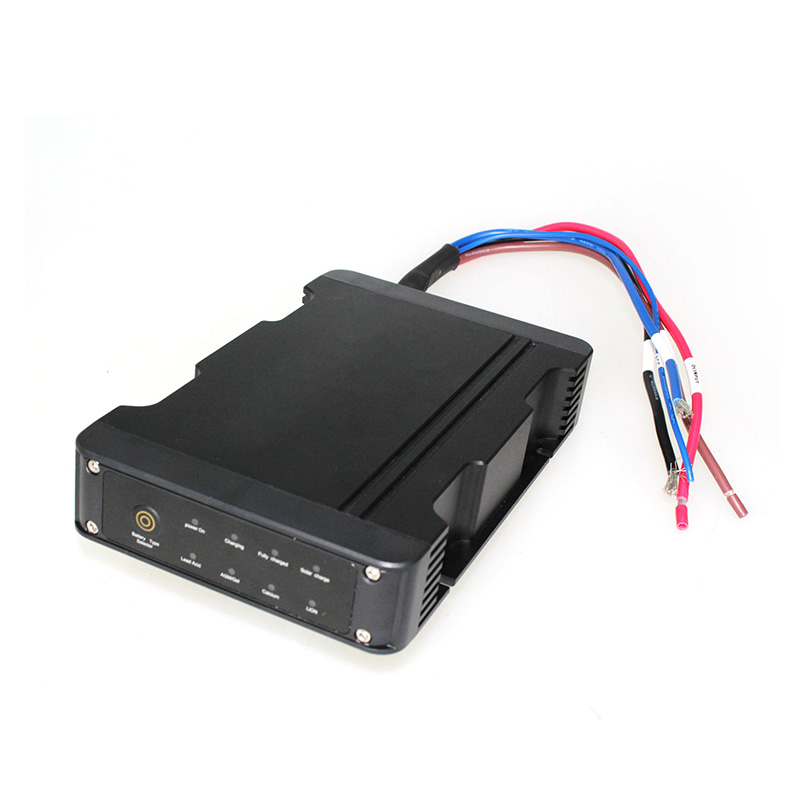

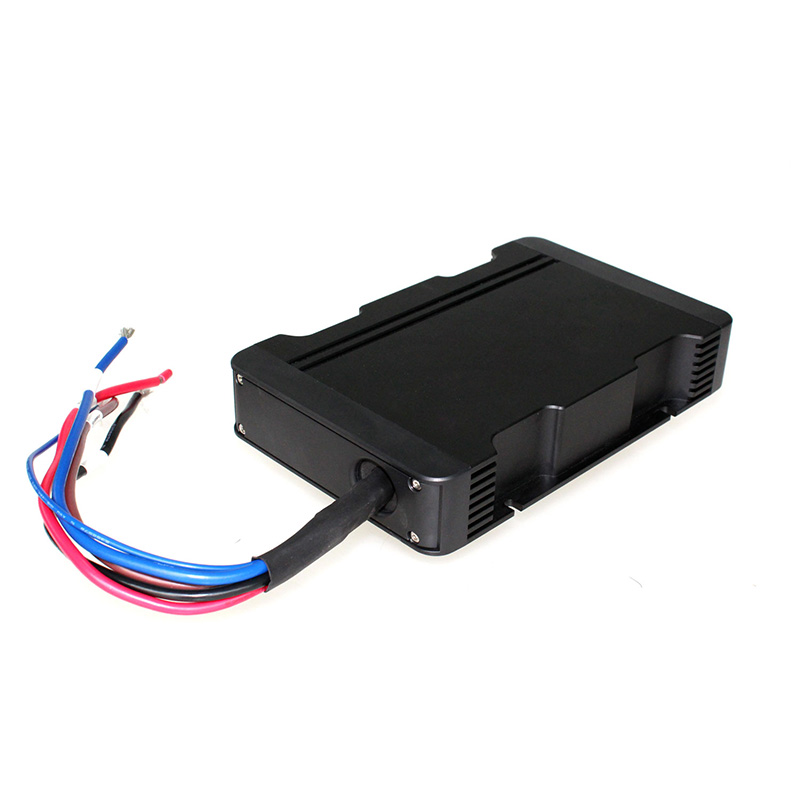

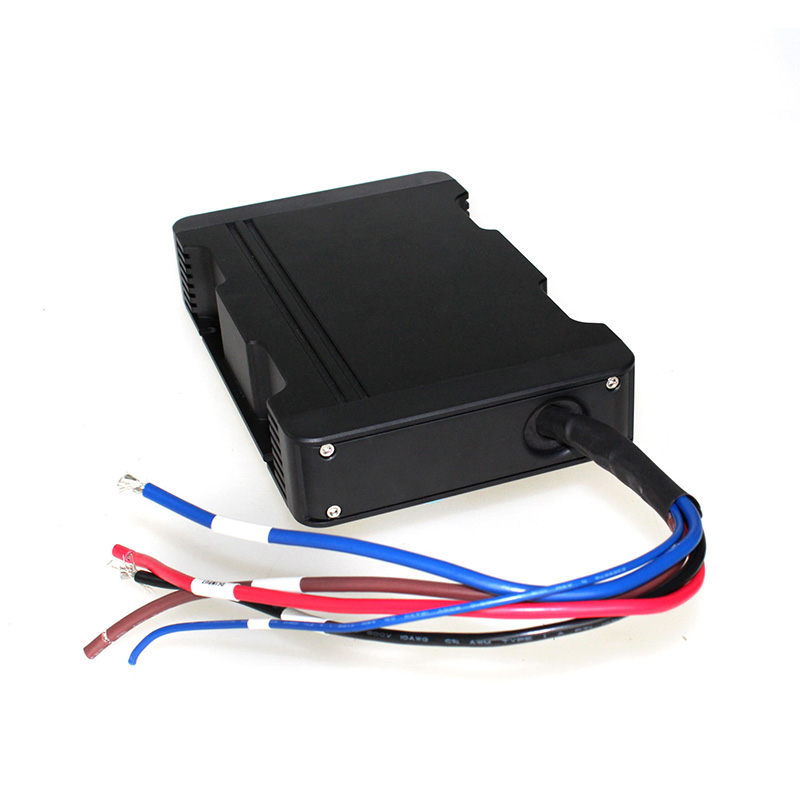

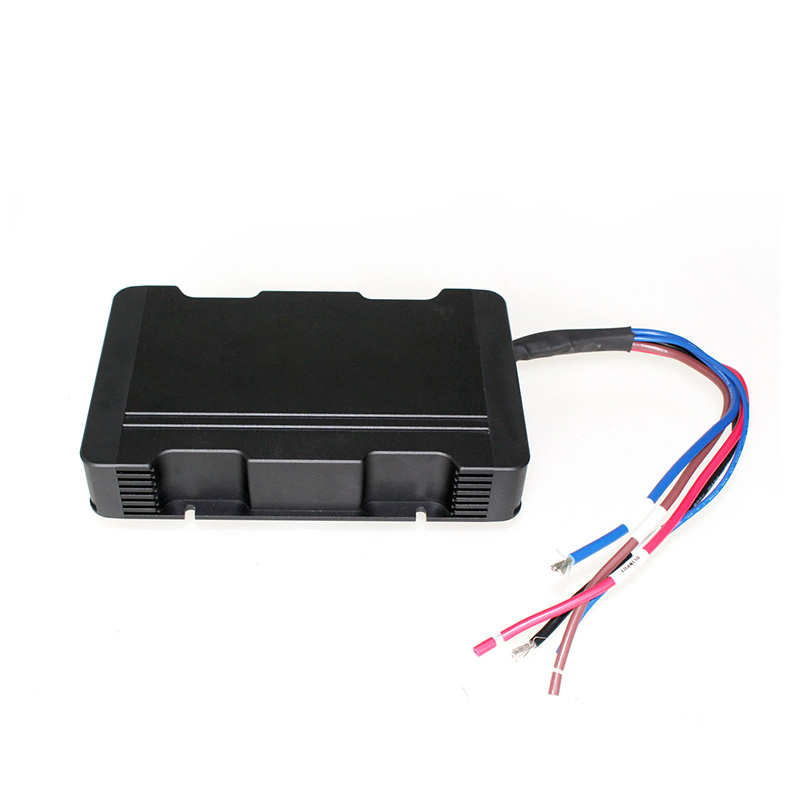

DCDC MPPT Solar Charger Li Power 01
DCDC MPPT Solar Charger Li Power 02
Model No. LPX1225
Electrical
Input nominal voltage 12 VDC
Alternator input voltage range (Intelligent type) 11.6 – 16 VDC (Start-up input voltage:12V)
Alternator input voltage range (tradition type) 12.8 – 16 VDC (Start-up input voltage:13.2V)
Automatic activation – D+ yes
PV Input voltage range 11.6-25 VDC (Start-up input voltage:12V)
Output nominal voltage 12 VDC
Absorption voltage AGM Battery:14.4V; LFP Battery:14.6V
Float voltage AGM Battery:13.5V; LFP Battery:13.8V
Charge current (A) 25
Efficiency MAX 97%
Temperature compensation yes
Voltage compensation yes
Charge algorithm Multi stage
Protection Battery charger over temperature; Battery over temperature; Over load; short circuit
Operating temp -20 ℃ — + 60 ℃
Enclosure
Material & Color Aluminum with anodized, flame proof plastic
Battery connection M8
Protection category IP65
Weight 1.5 kg

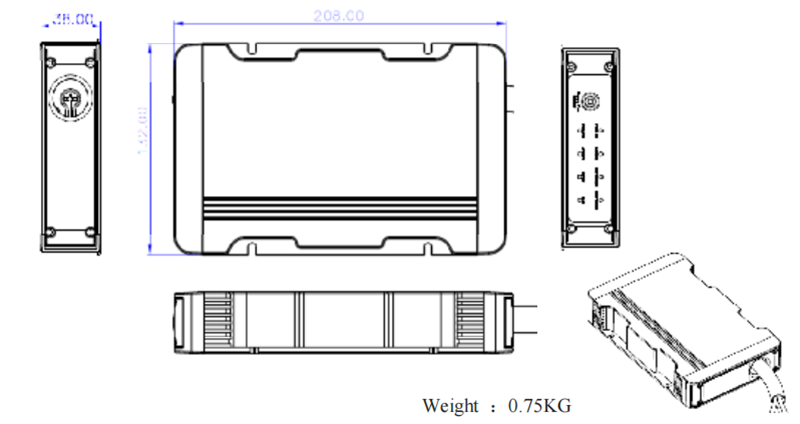

Dimensions ( h*w*d ) 60 mm x 102.3 mm x 186.3 mm
Standards
Safety EN60335-1,EN60335-2-29
Emission EN55014-1,EN55014-2,EN61000-3-2,EN61000-3-3

DCDC MPPT SOLAR CHARGER USER MANUAL

For More Information, Welcome to download DCDC MPPT Charger User Manual
