2500W Lithium Portable Power Station (X I & X II)
X I – 12.8V 120AH LiFePO4 Portable Power Station
X II – 12.8V 240AH LiFePO4 Portable Power Station

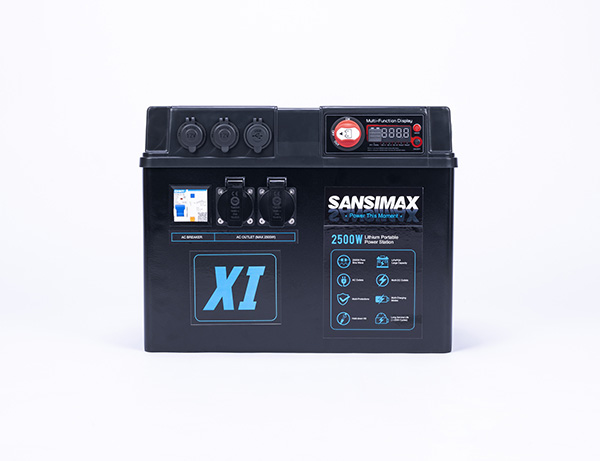

X I – 12.8V 120AH / 1536WH
All in one! 12.8V 120AH LiFePO4 portable power station with 2500W pure sine wave inverter, 30A DCDC MPPT solar charger built-in.
Dimension: L420 x W250 x H330mm; Weight: 25.00Kg

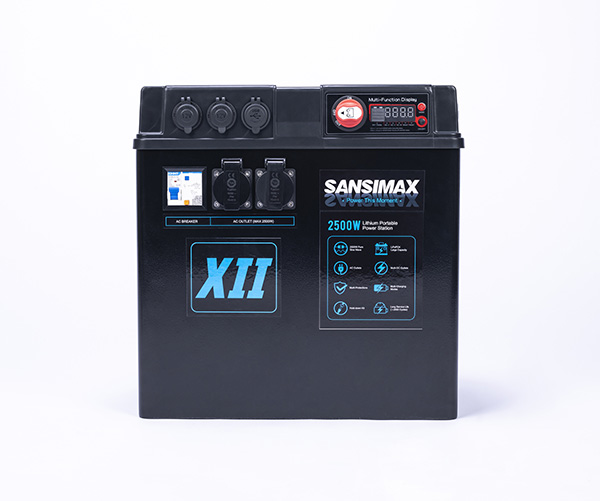

X II – 12.8V 240AH / 3072WH
All in one! 12.8V 240AH LiFePO4 portable power station with 2500W pure sine wave inverter, 30A DCDC MPPT solar charger built-in.
Dimension: L420 x W250 x H430mm; Weight: 40.00Kg

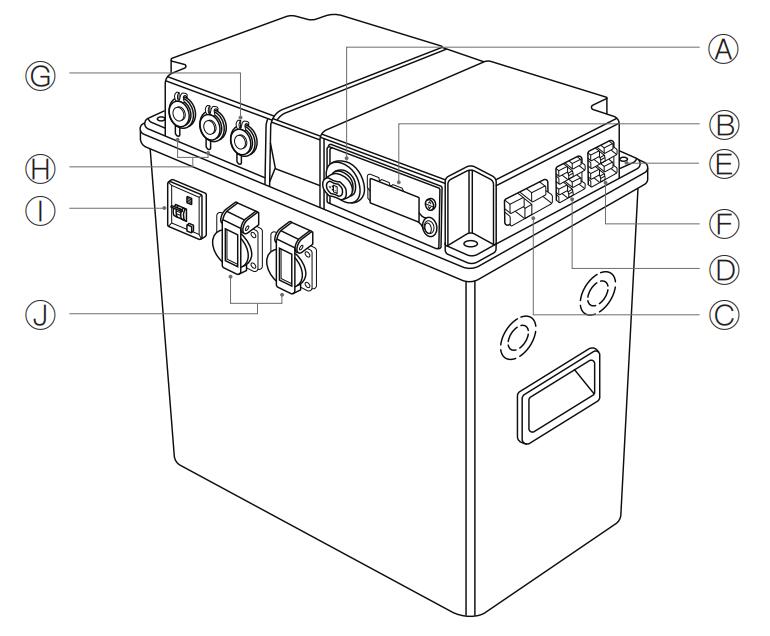

|A. DC SWITCH||F. 12V SOLAR INPUT|
|B. AC SWITCH & DISPLAY||G. USB 5V 2X2.1A|
|C. HI-AMP DC 12V OUTLET||H. DC 12V 10A|
|D. 50 AMP INPUT/OUTPUT||I. AC BREAKER|
|E. IN-VEHICLE CHARGE INPUT||J. AC OUTLETS|
LITHIUM PORTABLE POWER STATION OPERATING INSTRUCTIONS:
Once fully charged, the portable power station is ready to work immediately. No set up is required. All outputs may be used simultaneously. Please ensure the total load power is Not more than 2500W (12V 200A).
All 12V sockets & Anderson plugs are controlled by DC switch, except “12V SOLAR INPUT” and “IN-VEHICLE CHARGE INPUT”.
AC switch & display
Turn on, the display startup, activate the inverter with 1 beep alert.
